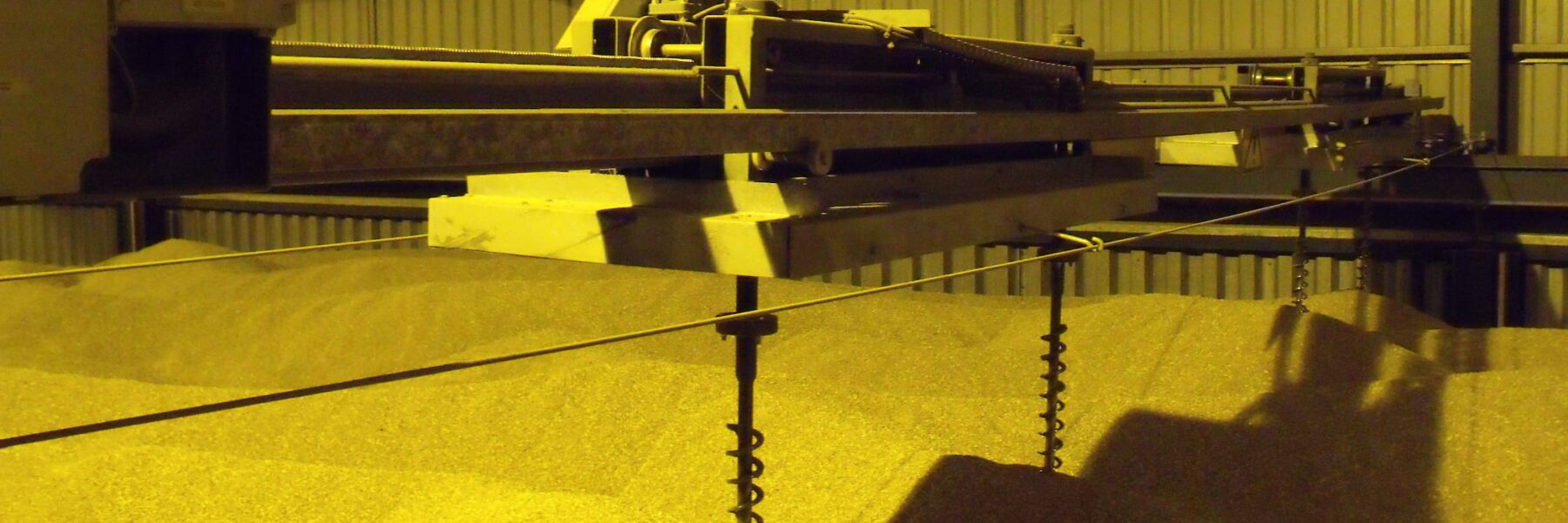

Crop Stirrers

Stirrers ease the airflow through the stored crop offering the user the ability to store at greater depths.

Fan sizes can be up to 50% smaller than those compared with static stores greatly reducing the need for large power supplies. This does not mean that drying rates are slower; on the contrary drying times are reduced as stirrers help to condition the crop as grain is moved and mixed giving even airflow and accurate drying removing hotspots.

Crop stirrer solutions from Tey Farm Systems

Tey Farm Systems offer stirrers as both fixed installations or portable units. Most existing stores can be retro-fitted with a stirrer but in those cases where a stirrer is required simply to facilitate air movement during a wet harvest a portable unit may be more suitable.

Fixed installations are available for floors up to 15.8m wide and depths of up to 4.2m.

Portable stirrers are available with auger lengths up to 4m and are available as single or double units, manual or remote-controlled.

Mobile – Self-Propelled Stirring Auger

What it does:

Facilitates drying by lifting grain from the bottom to the top
Mixes and blends the grain or other combinable crops
Makes the grain extremely flowable and non-compacted
Facilitates aeration
Helps maintain grain in store and allows quicker drying
Removes hot spots

Specification

2.2kW gear motor with stop start safety switch
Space age design 840mm aluminium platform with motor mount and unique steering device
50mm to 80mm grain stirring auger; lengths 2.0m-4.0m
Grain Butler weight with 2.0m auger is 38kg

Portable crop stirrers from Tey Farm Systems

EXTRAS

Augers 1.5, 2.0, 2.5, 3.0 & 4.0 metre (diameter varies with length)
Mobile Socket 16amp 5 pin
Extension lead 50m c/w socket and plug 3 phase
Extension lead 50m c/w socket and plug 1 phase
Conversion kit 4-5 pin
Delivery and commissioning charge

Fixed

The addition of a stirrer offers higher drying rates for combinable crops but beware, these should only be fitted to stores designed specifically for surcharge loading.

Stirrers allow more airflow through the crop, increasing the depth at which grain can be stored when drying.
